Phase III – System Design

This section describes the detailed system architecture, UML models, and key design principles applied in the Sillah (صلة) Family Health Management System.
The design ensures clarity, modularity, and extensibility, aligning with software engineering best practices taught in SE201.

3.1 System Architecture

The Sillah system adopts a three-layer architecture that separates the presentation, domain, and integration responsibilities.
This layered design improves maintainability and simplifies testing.

  1. Presentation Layer:
    Handles all user interaction. In this prototype, interaction occurs through a command-line interface managed by the Main class.

  2. Domain Layer:
    Implements the business logic and core functionality of the system.
    This includes classes such as User, FamilyMember, Appointment, Clinic, HealthEvent, Message, BookingSystem, AlertSystem, and AwarenessHub.

  3. Integration Layer:
    Represents future connectivity with external systems like a database, notification services, or APIs.

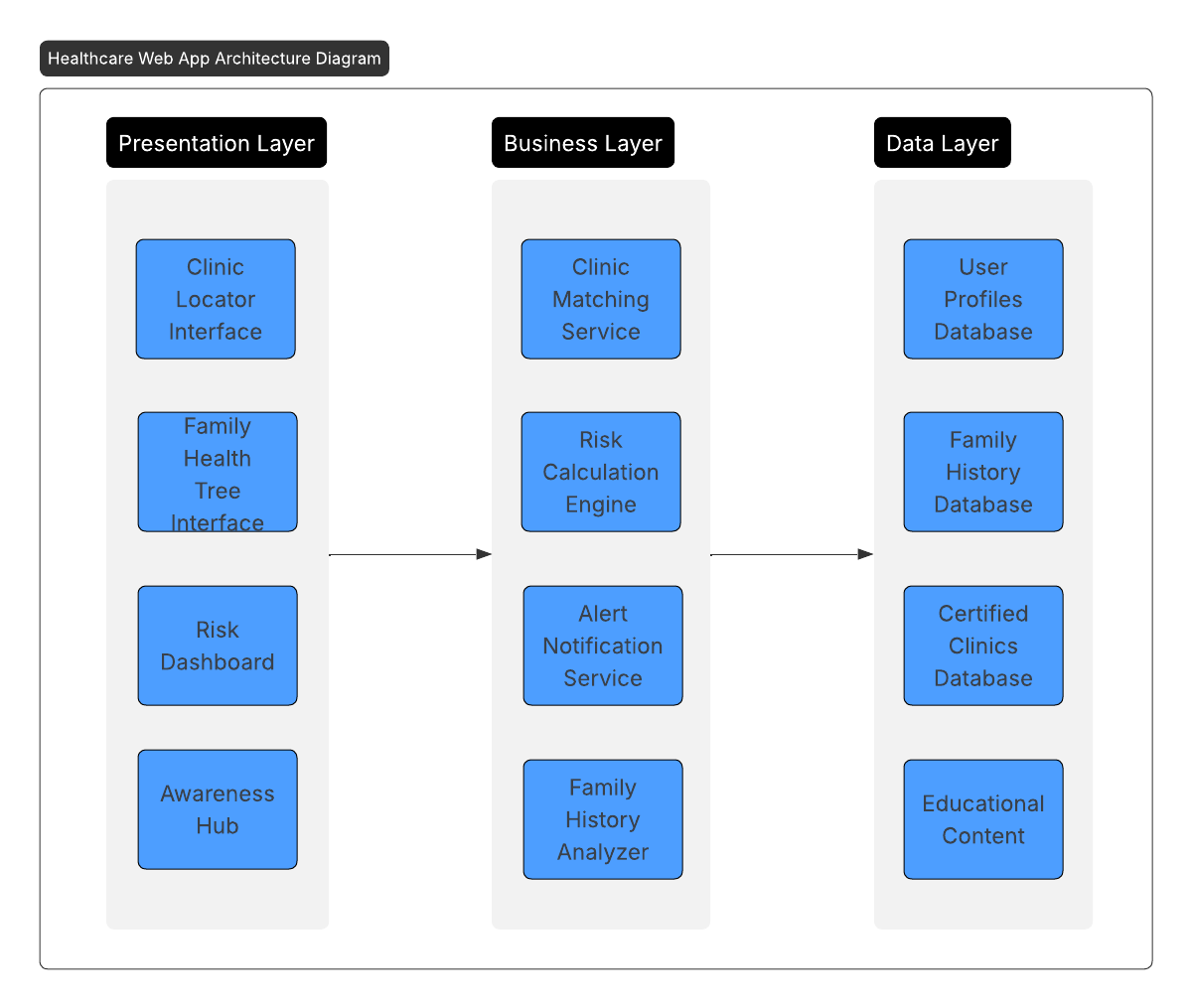

Figure 1: System Architecture Overview Figure 1 – System Architecture Overview.

The three layers communicate through well-defined interfaces.
For instance, the BookingSystem acts as the mediator between the user’s requests and the domain entities like Clinic and Appointment.

3.2 Class Design

The class structure of Sillah reflects clear object-oriented design and encapsulation.
Each class is responsible for a specific aspect of the system’s functionality.

Class Responsibility
User Represents a registered user, manages authentication and profile updates.
FamilyMember Stores family members’ health details and links to related appointments or health events.
Appointment Manages booking, cancellation, and completion logic.
Clinic Defines clinic information, available slots, and booking status.
HealthEvent Represents a medical event (checkup, ECG, vaccine) related to a family member.
BookingSystem Core controller that validates availability, manages bookings, and updates appointments.
AlertSystem Handles generation of alerts and reminders for upcoming appointments.
AwarenessHub Provides access to educational health articles and awareness materials.
Message Enables in-system messaging between users and clinics.
Main Serves as the entry point that coordinates all modules and simulates system operation.

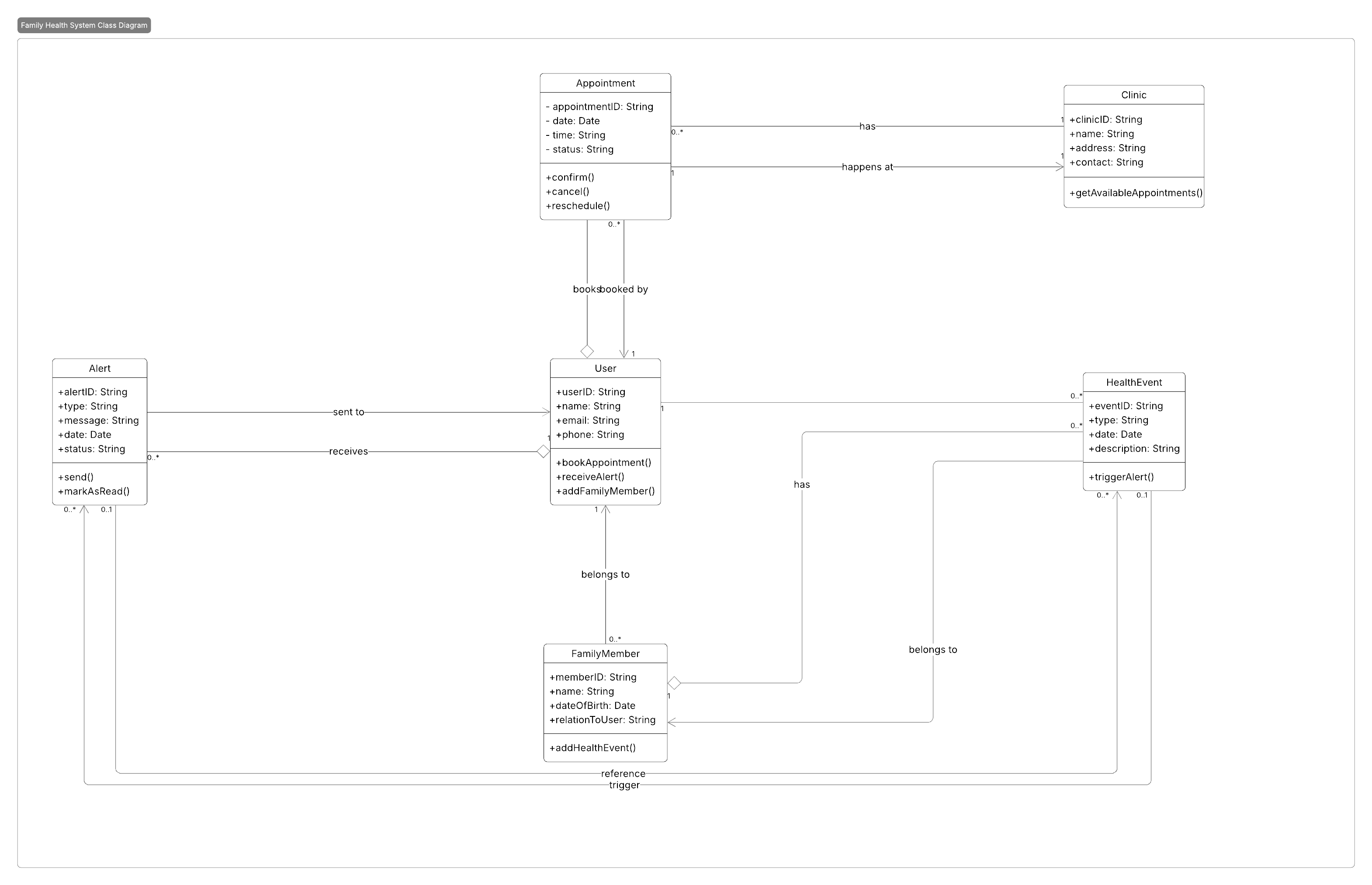

Figure 2: UML Class Diagram
Figure 2: System Architecture Overview

In the UML diagram, the relationships between classes highlight key interactions such as: - A User manages multiple FamilyMember records.
- Each FamilyMember can have several HealthEvent and Appointment objects.
- BookingSystem interacts with Clinic and AlertSystem to manage schedules and reminders.
- AwarenessHub connects to User to provide educational content.
- The Message class supports communication between users and clinics.

3.3 Use Case Design

The use case model defines how different system actors interact with the system.
The main actors include: - User: Registers, manages family information, books appointments, and receives alerts.
- Clinic: Manages schedules and confirms or cancels appointments.
- Administrator: Manages clinic profiles and awareness content.

Primary Use Cases

  1. Register and login to the system.
  2. Add, update, or remove family members.
  3. Book and cancel clinic appointments.
  4. Record health events for family members.
  5. Receive alerts and reminders for upcoming medical activities.
  6. View awareness articles and health recommendations.
  7. Message clinics for inquiries or appointment changes.
  8. Manage system content (administrator only).

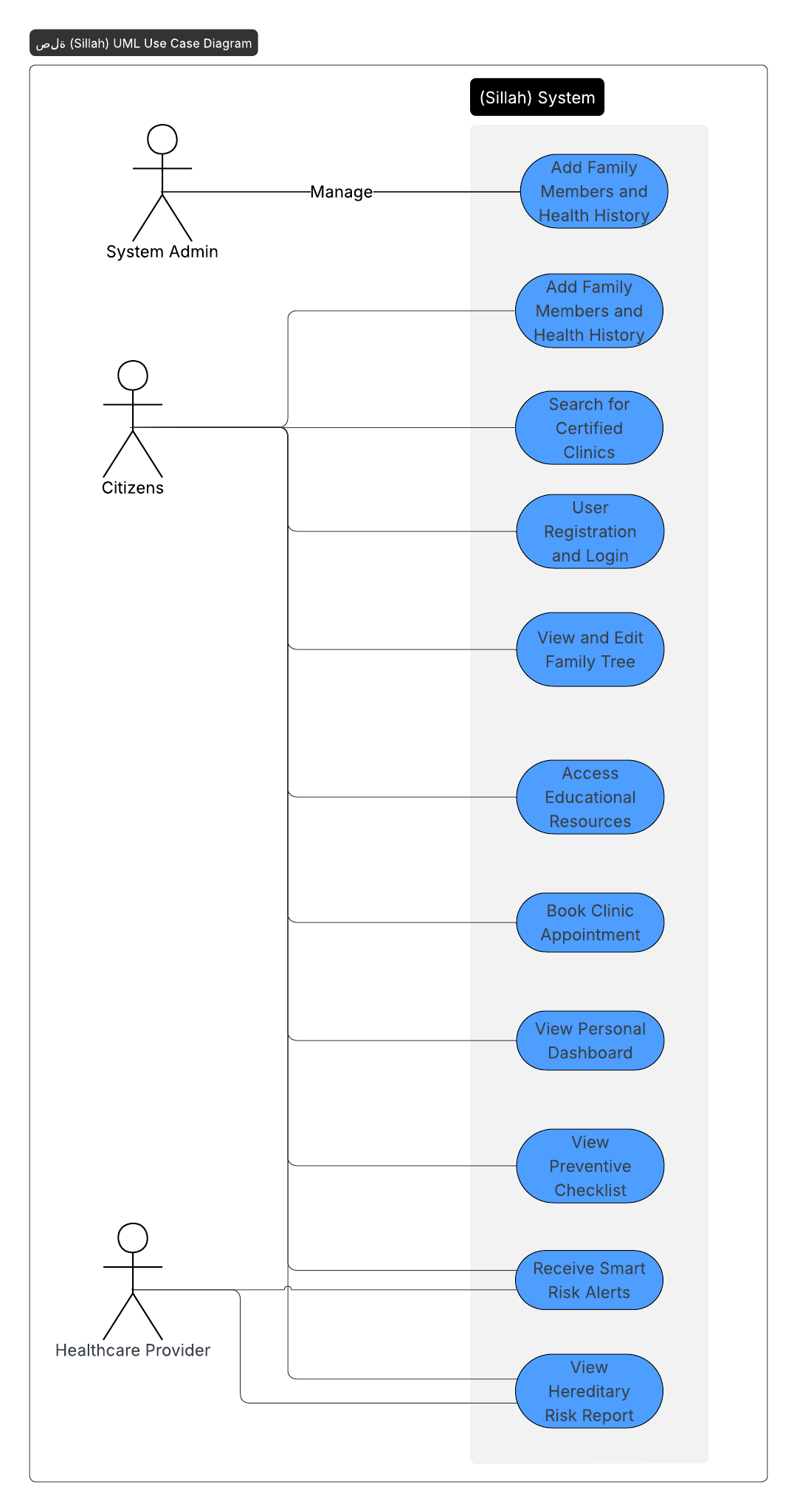

Figure 3: Use Case Diagram Figure 3 – Use Case Diagram of the Sillah (صلة) System.

Each use case in the diagram illustrates how users and clinics interact with the core subsystems, highlighting the sequence of communication between modules.

3.4 Activity Diagram

The activity diagram illustrates the workflow of the system, showing how users interact with the system through a series of actions and decision paths.
It visualizes the main user flow — from logging in and managing family data to generating alerts and booking appointments.

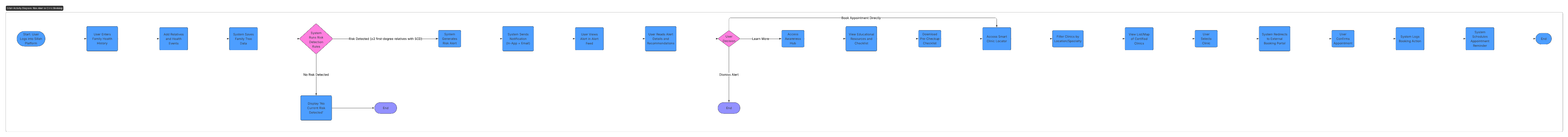

Figure 4: Activity Diagram Figure 4 – Activity Diagram of the Sillah (صلة) System.

This diagram captures the logical flow of operations and decision-making within the Sillah system, emphasizing the dynamic behavior between key functions such as risk detection, alert generation, and appointment scheduling.

3.5 Sequence Design

To illustrate the system flow, consider the appointment booking scenario, which demonstrates the interaction between key classes.

Example Sequence: Booking a Clinic Appointment

  1. The user selects a family member and chooses the “Book Appointment” option.
  2. The BookingSystem checks available slots in the Clinic.
  3. If a slot is available, the system creates a new Appointment and confirms it.
  4. The AlertSystem automatically schedules a reminder for the appointment.
  5. The user receives confirmation through a message and alert notification.

Figure 5: Sequence Diagram Figure 5: Sequence Diagram Figure 5: Sequence Diagram

Figure 5 - Sequence Diagram – Appointment Booking Flow . This design ensures proper communication between independent modules and prevents data duplication.

3.6 Design Principles Applied

The following software engineering principles were applied throughout the project:

Principle Description
Single Responsibility Principle (SRP) Each class serves one clear purpose (e.g., AlertSystem only manages alerts).
Encapsulation All data is private and accessible only through public methods.
Inheritance Common attributes are reusable (e.g., User → FamilyMember).
Abstraction Complex logic is hidden behind clean, accessible methods.
Modularity System divided into independent, testable modules.
Extensibility Architecture allows adding new modules (e.g., database) without refactoring existing code.

3.7 Requirements-to-Design Mapping

Requirement Corresponding Design Component
User authentication and registration User class
Manage family members FamilyMember and HealthEvent classes
Appointment booking and cancellation BookingSystem, Appointment, Clinic
Alerts and reminders AlertSystem
Awareness content AwarenessHub
Messaging system Message
Administrative control AwarenessHub, Clinic, User (admin roles)

This mapping ensures every functional requirement from Phase II is represented by a clear design element.

3.8 Key Design Decisions

  1. Layered Architecture: Improves separation of concerns and future scalability.
  2. Centralized Control via BookingSystem: Simplifies scheduling logic and error handling.
  3. OOP-Based Reusability: Common methods are reused across multiple modules.
  4. Lightweight AlertSystem: Designed to be stateless and event-driven for efficiency.
  5. Independent AwarenessHub: Allows updating articles without affecting the booking workflow.
  6. Future Database Support: Class structure already accommodates persistent storage integration.

3.9 Future Enhancements

The current design provides a functional, console-based prototype.
The following improvements are recommended for future development:

  • Add persistent database storage using MySQL or PostgreSQL.
  • Replace CLI with a JavaFX graphical interface.
  • Enable real-time notifications via email or SMS.
  • Integrate role-based dashboards for users, clinics, and administrators.
  • Extend the system to include mobile app support for Android and iOS.
  • Include data analytics for public health insights.

3.10 Summary

The Sillah (صلة) Family Health Management System was designed to reflect robust, scalable, and maintainable software engineering principles.
Each component was structured for clarity and reusability, ensuring that future developers can extend the system easily with minimal coupling.

The next phase, Prototype & Testing, demonstrates how this design translates into a working implementation and validates system performance and correctness.
